Bushcat Build Log
-
Instrument Panel - Radio Wiring

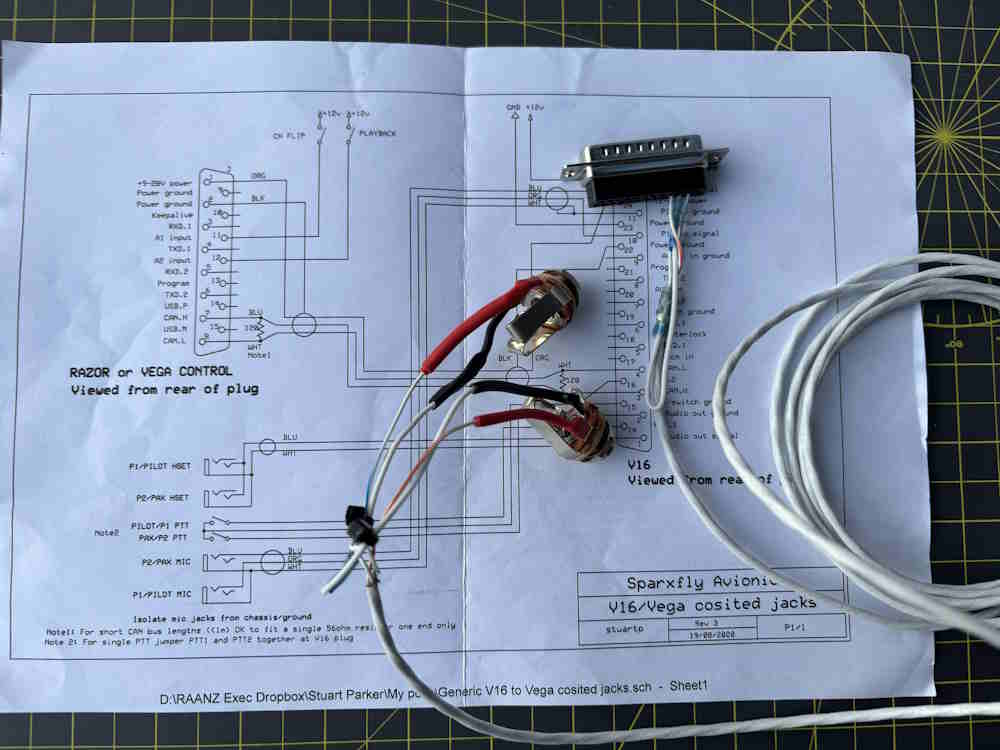

Aircraft: Bushcat 19-2226 Task Date: 20/09/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 3 hrs Task: Wiring for microphone sockets soldered and wires for DSUB 25 plug crimped and inserted. More... -
-

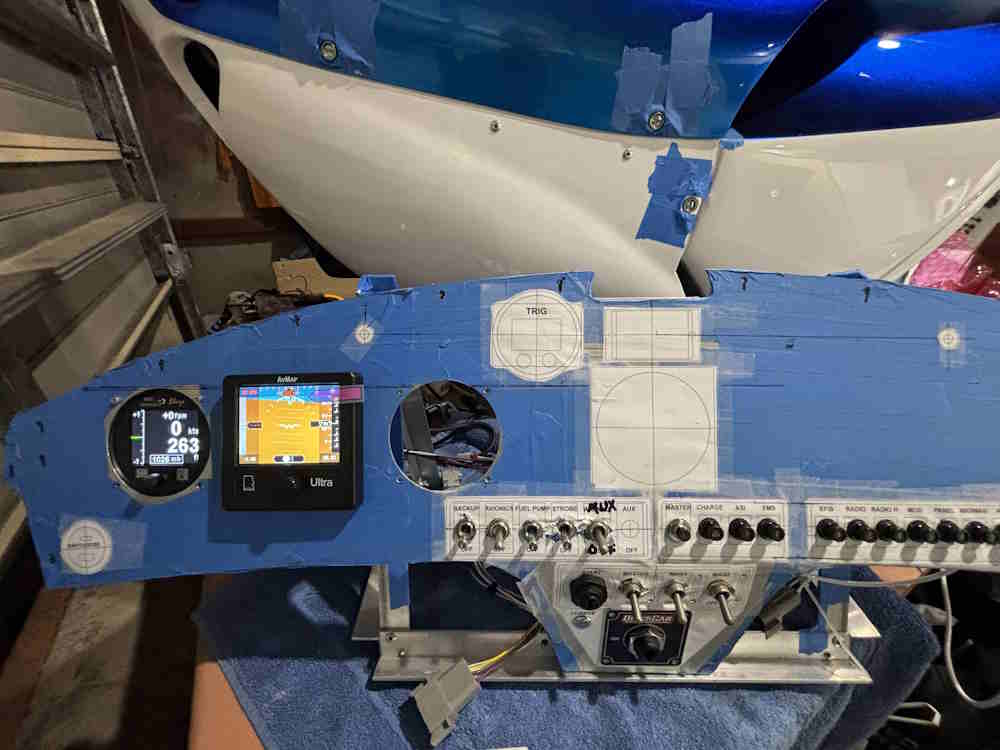

INSTRUMENT PANEL - AVIONICS TRAY - SLIP INDICATOR AND RADIO CONTROL HEAD INSTALLATION

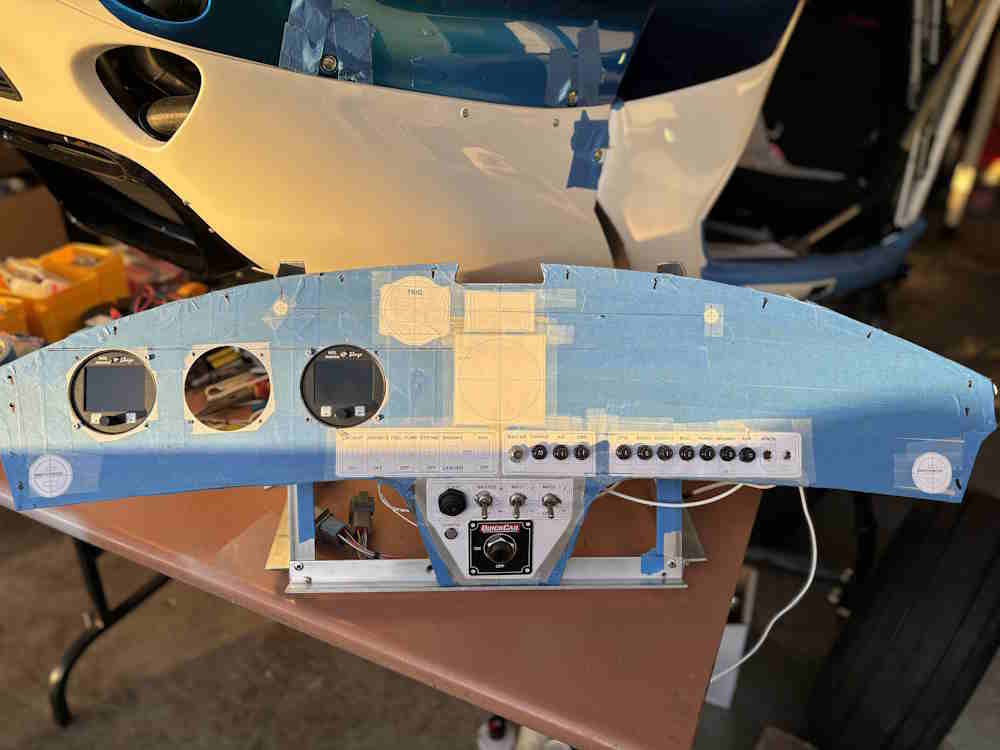

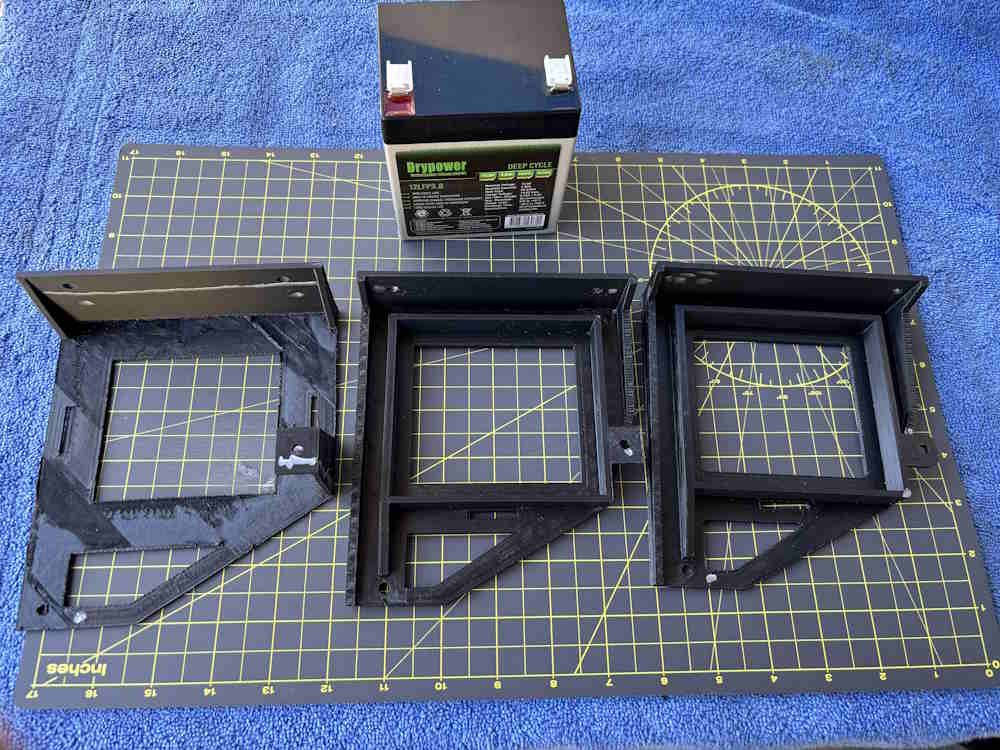

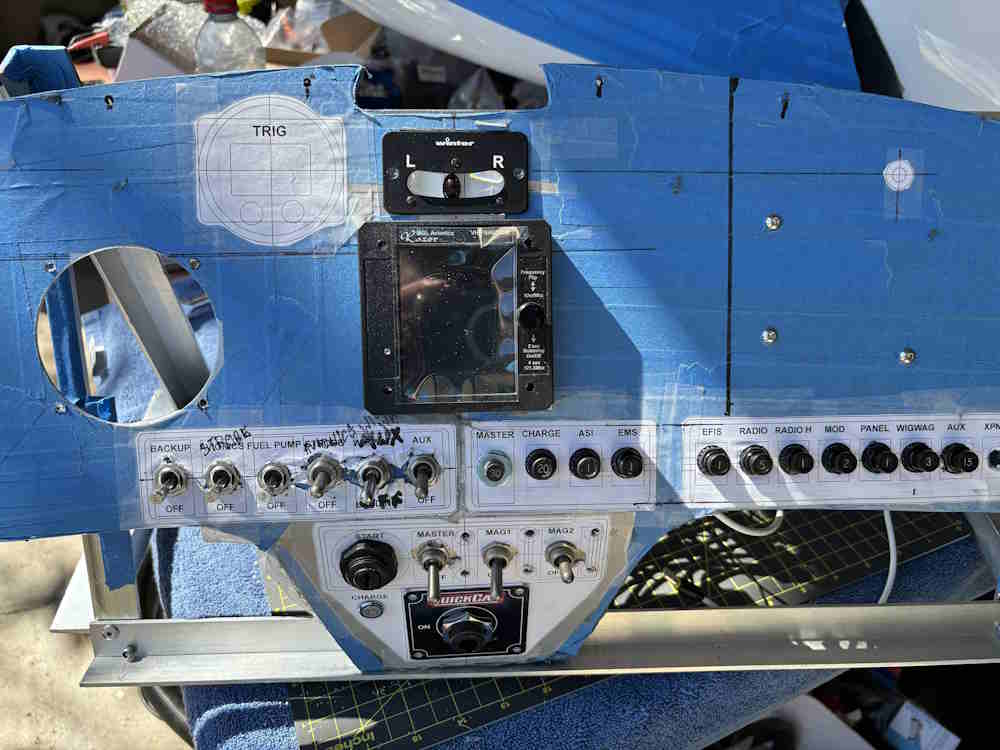

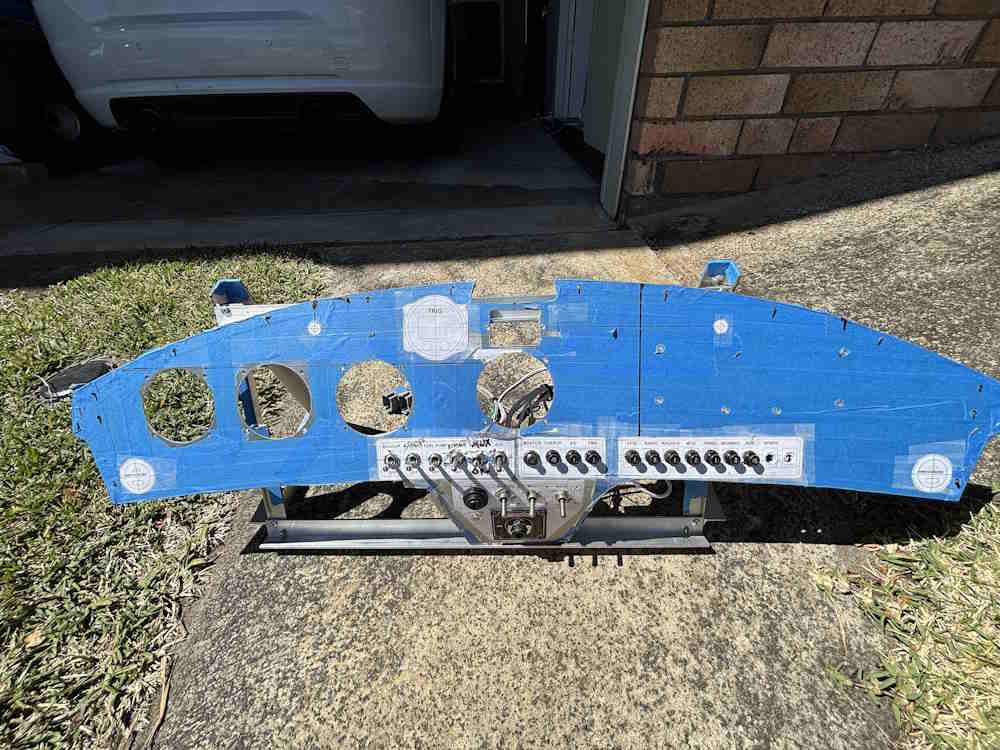

Aircraft: Bushcat 19-2226 Task Date: 19/09/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 4 hrs Task: Refitted avionics tray after installing battery backup modules.Cut holes in panel for slip indicator and radio control head. More... -
-
INSTRUMENT PANEL - AVIONICS TRAY

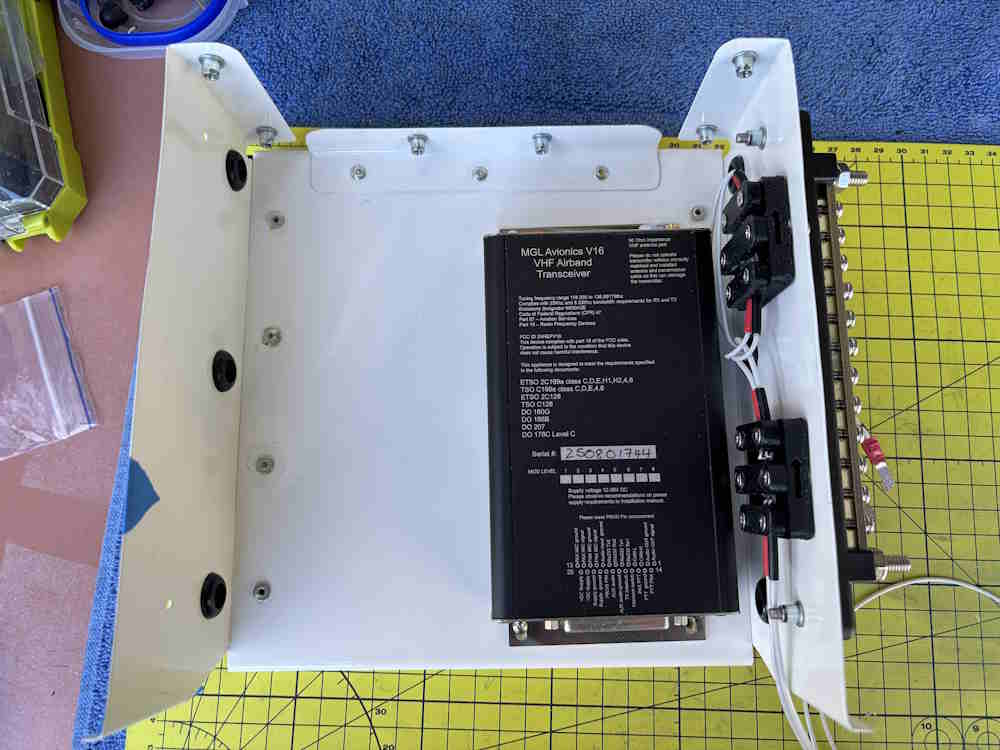

Aircraft: Bushcat 19-2226 Task Date: 13/09/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 1 HR Task: Check fitting of radio. Drill holes and install rivnuts to hold radio. More... -
-
INSTRUMENT PANEL - AVIONICS TRAY

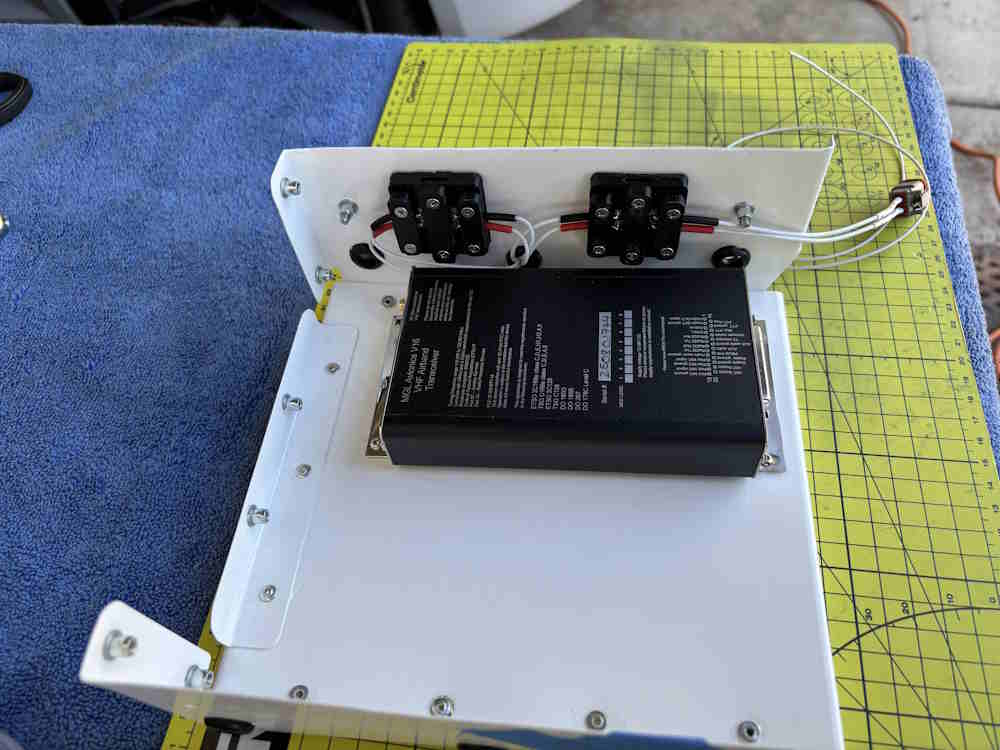

Aircraft: Bushcat 19-2226 Task Date: 12/09/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 4 hrs Task: Rivet avionics tray and install rivnuts for attachment to panel and installation of the earth bus bar. More... -
